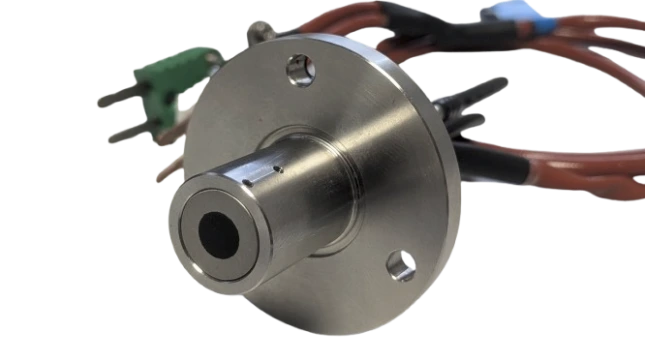

CHF Series

CHF Series

The CHF Series cooled heat flux sensors developed by Nextherm Sensing are designed for the continuous and instantaneous measurement of high heat fluxes, from a few kW/m² up to several MW/m².
Derived from the GHF radial thermal gradient technology, these sensors integrate an optimized liquid cooling system for stable and long-term operation, even under very high heat flux conditions.
Available in radiative, convective or total heat flux versions, they are suitable for a wide range of laboratory tests and demanding industrial environments.

0.00 € 0.00 €
0.00 €



Main Features


Caractéristique Value
Heat flux ranges 250, 500, 1,000 and 5,000 kW/m²
Output Heat flux proportional to voltage output (mV)
Sensitivity >10 mV per MW/m², depending on range
Response time <200ms (0-90%)
Temperature monitoring output Optional, Type K thermocouple
Operating conditions Under pressure or vacuum
Standard mechanical mounting Threaded (M16x150) or flanged; custom mounting available

Technical Documentation


Download the Product Datasheet          Download the Product Brochure
